ELMO MA-1 Android-Based Wireless Document Camera (2 Options)

Intuitively designed for the most immersive STEM experience, the MA-1 STEM-CAM opens up a world of endless learning possibilities in the K-12 classroom. The MA-1 is our first Android-based document camera, with a multi-touch screen for navigation. This gives users the ability to browse the web and access educational apps over Wi-Fi or using a wired network connection.



The MA-1 also comes with built-in Miracast wireless display connectivity and a built-in battery. These features allow educators to move about the classroom to directly engage with students, without having to be tethered to their desks.

Features include:

16X Zoom in Full HD
The MA-1 offers 16x digital zoom at 1080p Full HD.

Multiple Connectivity Options

The MA-1 comes with HDMI out(Type A), HDMI In (Type A), RGB Out (D-sub 15p), USB (Type A) x 2, USB (Type B), Ethernet (RJ-45), Audio Out (3.5mm Stereo), Audio In (3.5mm Stereo), WiFi (IEEE 802.11 a/b/g/n - 2.4GHz & 5GHz) and Miracast wireless display technology.

Flexible

The MA-1 is equipped to twist, bend, and fold, making it one of the most flexible document cameras in the ELMO lineup.

Built-In Battery
With three hours of continuous battery life you'll never have to worry about charging during a lesson.

---

Specifications:

Main Camera:

• Max Power Consumption: 15W (Charging Battery)
• Outside Dimensions:
  • W 8.6" x D 4.5" x H 13.5" (Setup)
  • W 8.6" x D 4.5" x H 2.25" (Folded)
• Weight 2.4lbs
• External Control Terminal: Navigation buttons on base

Lens:

• Lens: F=2.0
• Frame Rate: 30fps at 1080p
• Zoom: 16x Digital
• Focus: Auto (one push)
• Imaging Area: 13" x 17.25" 4:3
• Effective Pixels: H: 3280 V: 2464

Functions:

• Brightness: Auto (Set value 0~12)
• Image Rotation: 90° / 180°

Connectivity:

• Wired: HDMI out(Type A), HDMI In (Type A), RGB Out (D-sub 15p), USB (Type A) x 2, USB (Type B), Ethernet (RJ-45), Audio Out (3.5mm Stereo), Audio In (3.5mm Stereo)
• Wireless: W-Fi (IEEE 802.11 a/b/g/n - 2.4GHz & 5GHz), Miracast

---

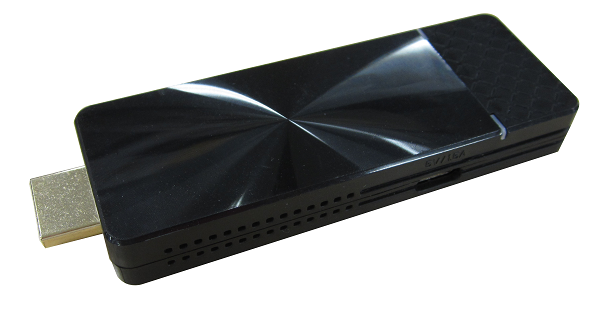

2d Purchase Option: Add the ELMO Cast Wireless 4K Video Streamer for Classrooms

Enhance your wireless presentation capabilities and provide your audience with an experience they’ll never forget. ELMO Cast effortlessly streams your multimedia presentation from any mobile device or ELMO STEM-CAM in up to 4K Ultra HD resolution.

ELMO Cast provides wireless video streaming in up to 4K Ultra HD resolution using the latest in WiFi casting technology. The 5GHZ 802.11ac Wi-Fi radio with a high sensitivity 2T2R MIMO antenna offer the highest possible bandwidth. The highly efficient System on Chip (SoC) design and 1GB DDR3 memory mean a super low latency signal and minimal lag. ELMO Cast is HDMI 1.4 compliant to support 4K Ultra HD video and audio.
