IPEVO VZ-X Ultra 13MP Wireless HDMI & USB Document Camera with 4K Wireless Display Receiver

Introducing the VZ-X ULTRA 13MP document camera that redefines classroom flexibility with stunning clarity and seamless wireless performance. With WiFi, HDMI, and USB connectivity, plus the included 4K wireless display receiver, casting to any screen is fast and effortless — no cables, no lag, no limits. Set up in seconds, move freely, and teach with uncompromising clarity anywhere.

Features include:

From Device to Display in Seconds
VZ-X ULTRA offers flexible 3-in-1 connectivity via WiFi, HDMI, and USB, making it easy to adapt to any teaching or presentation environment. The included 4K wireless display receiver enables instant wireless projection to any HDMI-compatible display.For Windows PCs, the version that includes a USB WiFi adapter ensures uninterrupted internet access—no additional setup required.

Wirelessly Cast to an HDMI Monitor or TV Without a PC

In the version that includes the 4K wireless display receiver, the VZ-X ULTRA connects seamlessly for wireless projection to any HDMI TV or monitor—no computer required.It pairs automatically with the included receiver, ensuring a quick and effortless setup.

13MP Clarity That Captures Every Detail

The 13MP high-resolution camera delivers ultra-sharp visuals, capturing every detail with precision. Whether working with text, images, or objects, the VZ-X ULTRA ensures consistently clear output—even in low-light environments.

Enhanced Portability and Flexible Design for Optimal Use in Any Setting

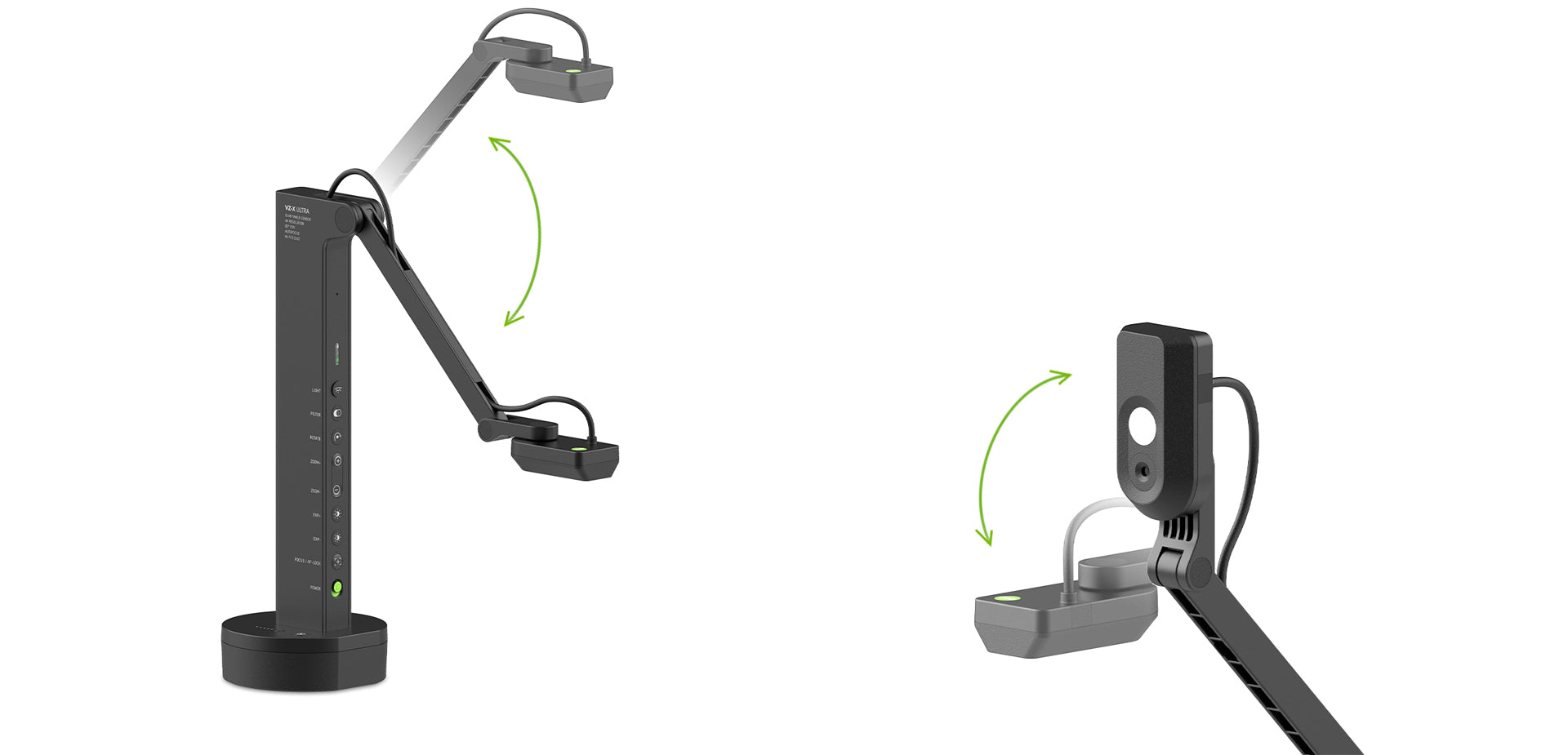

The VZ-X ULTRA features a swiveling head and multi-jointed body, allowing you to capture images from various heights, angles, and orientations in real time. You can effortlessly switch between vertical and horizontal views. Made from glass fiber reinforced thermoplastic, the durable yet lightweight body ensures easy portability for presentations or lessons.

Smart Lighting and Clear Sound

A built-in LED light enhances visibility in low-light settings, while the integrated microphone (available in USB mode) ensures clear, synchronized audio. Ideal for hybrid teaching, live demonstrations, and video recording.

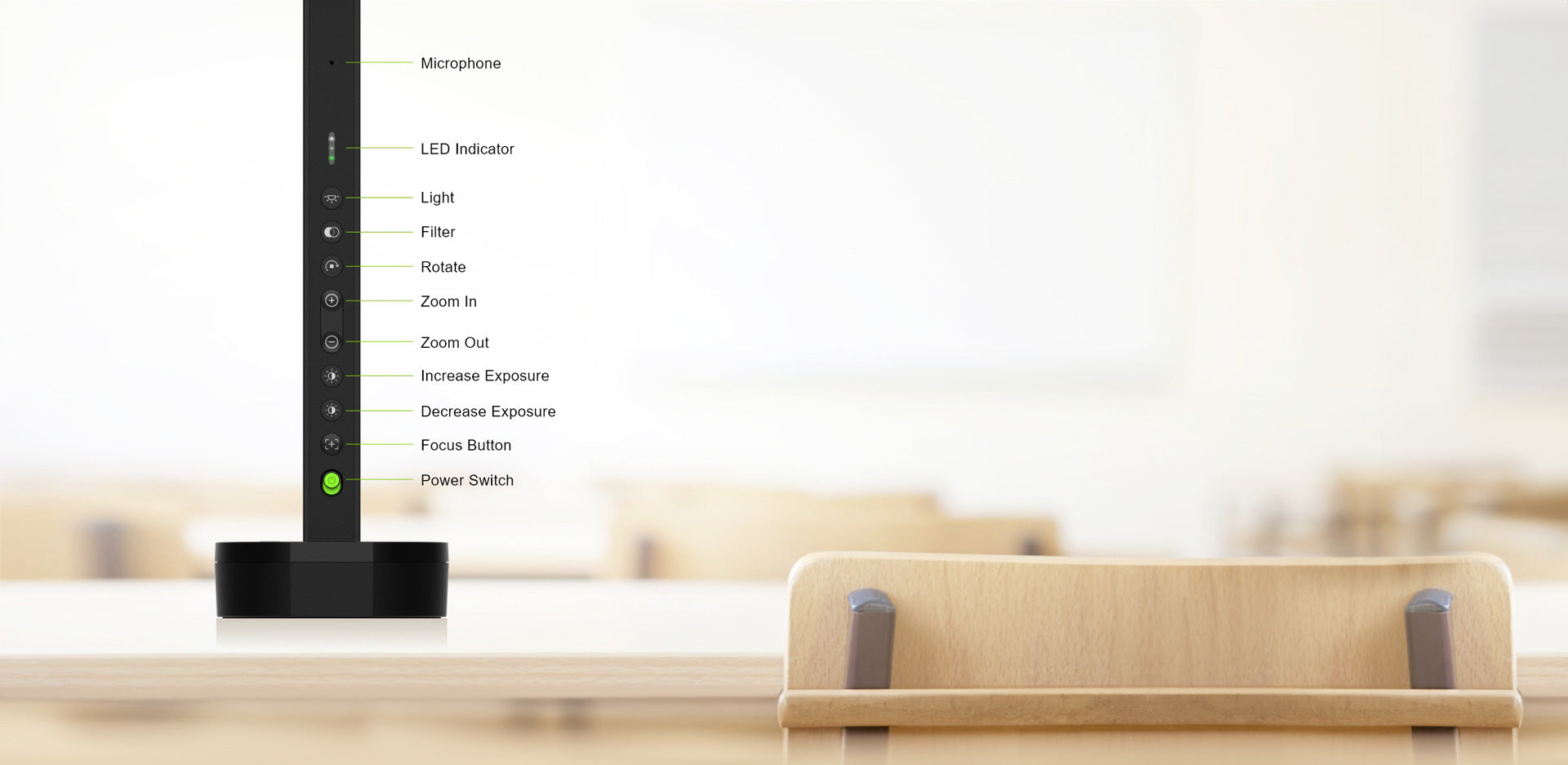

Instant Control with the Action Button

The base-mounted Action Button provides quick access to key Visualizer software features, including snapshots, video recording, and document scanning. Available in USB and Wi-Fi modes for intuitive, real-time control.
*Note: The Action Button is functional only in USB or WiFi mode when using IPEVO Visualizer software.

Seamless Integration with Your Favorite Tools

VZ-X ULTRA works seamlessly with leading web conferencing platforms and online teaching tools. Enhance lessons with live annotations and interactive content, creating a more engaging and collaborative learning experience.
*Note: Video conferencing platforms (such as Teams and Zoom) automatically compress video based on network conditions. High-resolution cameras like 4K require higher bitrates to maintain clarity during compression, so on some platforms, 4K video may actually appear less clear than 1080p.

Specifications:

Camera:

• Sensor: 1/3.06" CMOS
• Max Resolution: 3840 x 2160
• Lens Type: Auto Focus
• Focal Length: 3.46 mm
• Aperture: 2.2
• FOV: DFOV: 79.3
• Max Capture Area:
  • 20.07 x 11.8 (510 x 300mm) [16:9]
  • 16.1 x 11.8 (410 x 300mm) [4:3]
• Shutter Time: 1/7.5 ~ 1/30000 sec
• WDR: N/A
• Zoom: 1x ~ 4x (Digital) 1x ~ 20x (via Visualizer)

Microphone:

• Type: Omni-directional microphone
• Audio Compression: PCM
• Pick Up Range: 30 ~ 70cm
• SNR: 60 dB
• Frequency Range: 48K 1ch-16bit PCM

Video:

• Video Compression: MJPG YUV H.264 (WiFi mode)
• Max Frame Rate:
  • 4096 x 3072 @15 fps
  • 3264 x 2448 @30fps
  • 3840 x 2160 @30fps
  • 1920 x 1080 @60fps (Default)
  • 1920 x 1080 @30fps

  Connectivity:

  • USB-C (UVC/UVA)
  • HDMI
  • WiFi (2.4G and 5G dual band)

  Compatibility:

  • Windows : Win 8 and abouve / Standard UVC
  • MAC: macOS 10.13 and above.
  • Chrome OS & Chrome OS Flex: The latest version.
  • Android: Ver.11 and above
    Please Note: The IPEVO camera is recognized by the IPEVO Visualizer app on iPadOS 17 and later with a USB-C iPad. It can also be detected by apps like FaceTime, Teams, and Zoom that support external cameras. If the app doesn't support external camera detection, the camera may not be recognized.

  Warranty: 3 years from the date of purchase

  ---

  Physical Specifications:

  • Dimensions: D x W x H (when folded) 4.57 x 4.25 x 12.68 (11.6 x 10.8 x 32.2cm)
  • Weight: 2.58 lbs (1172g)

  ---

  Package Contents:

  • IPEVO VZ-X ULTRA
  • USB-A to USB-C Cable (4.92 ft / 1.5 m)
  • 4K Wireless Display Receiver
  • Quick Start Guide
