IPEVO VZ-R Ultra 13MP Dual-Mode Document Camera

The IPEVO VZ-R Ultra is a 13MP dual-mode document camera designed for effortless real-time image sharing. Its ultra-high resolution is ideal for modern classrooms, delivering sharp and detailed image capture, even for larger materials. Combining portability with stability, this versatile tool eliminates the need for extra equipment. With plug-and-play connectivity, it easily connects to interactive flat panels (IFPs), monitors, or projectors without requiring a computer. Always ready for action, it’s an essential tool for today’s educators.

Features include:

Dual-Mode Connectivity with HDMI and USB for Versatile Sharing
The VZ-R ULTRA offers both HDMI and USB options, ensuring adaptability across various environments. In teaching settings, HDMI mode allows direct connection to interactive flat panels (IFPs), TVs, monitors, or projectors, enabling image sharing without the need for a computer. This helps educators present high-quality visuals, enhancing classroom engagement and interaction. In USB mode, the VZ-R ULTRA is compatible with a wide range of software, providing flexibility for online teaching.

Superior 13MP Document Camera for Detailed Image Capture

Discover the IPEVO VZ-R ULTRA, equipped with a powerful 13MP camera that captures even the finest details with stunning clarity and precision. This enhances OCR (Optical Character Recognition) capabilities, allowing users to extract text more accurately. The VZ-R ULTRA is the ideal choice for educators, professionals, and anyone seeking high-quality document imaging.

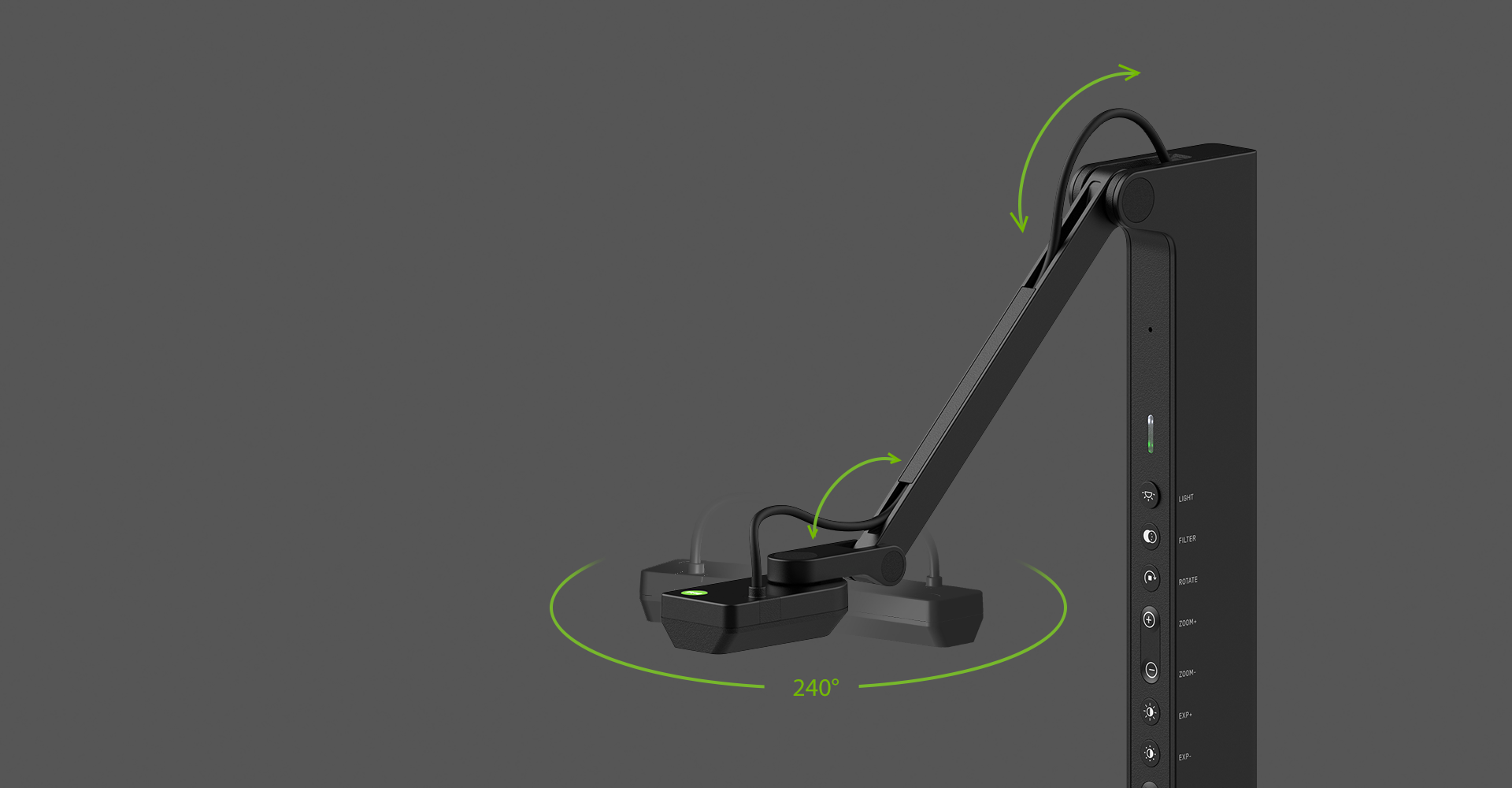

Flexible Use with Swiveling Head and Multi-Jointed Stand

Easily adjust the VZ-R ULTRA to various heights, angles, and orientations using its swivel head and reinforced multi-jointed stand, providing flexibility for capturing materials.

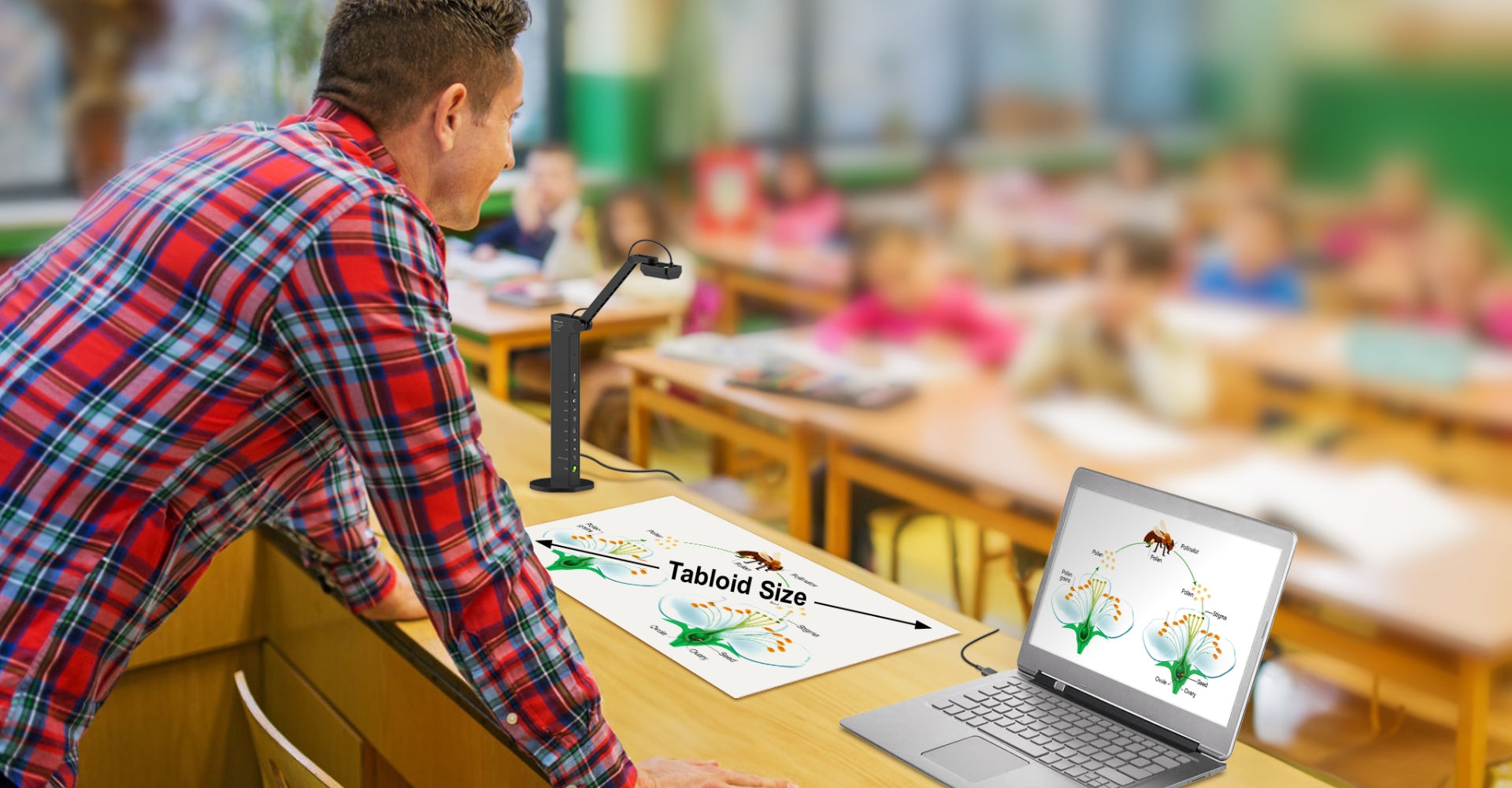

Elevated Angle for Enhanced Capture of Tabloid Size Area

Visualizer for classroom instruction: effortlessly display and project a variety of teaching materials, documents, and large-format learning resources.

Built-in LED for Low-Light Optimization

VZ-R ULTRA comes equipped with a built-in LED light, providing additional illumination when you need it. Ideal for capturing material in dimly lit classrooms or conference rooms lacking sufficient lighting.

Specifications:

Camera:

• Sensor: 1/3.06" CMOS
• Max Resolution: 4096 x 3072
• Lens Type: Auto Focus
• Focal Length: 3.46 mm
• Aperture: 2.2
• FOV: DFOV: 80
• Max Capture Area:
  • 17.9" x 10.1" (455 x 256mm) [16:9]
  • 18.9" x 14.4" (480 x 366mm) [4:3]
• Shutter Time: 1/7.5 ~ 1/30000 sec
• WDR: N/A
• Zoom: 1x ~ 4x (Digital) 1x ~ 20x (via Visualizer)

Microphone:

• Type: Omni-directional microphone
• Audio Compression: PCM
• Pick Up Range: 30 ~ 70cm
• SNR: 60 dB
• Frequency Range: 48K 1ch-16bit PCM

Video:

• Video Compression:
  • MJPG
  • YUV
• Max Frame Rate:
• 4096 x 3072 @15 fps
• 3264 x 2448p @30fps
• 3840 x 2160p @30fps
• 1920 x 1080p @60fps
• 1920 x 1080p @30fps (Default)

Connectivity:

• USB-C (UVC/UVA)
• HDMI

Compatibility:

• Windows : Win 8 and abouve / Standard UVC
• MAC: macOS 10.13 and above.
• Chrome OS & Chrome OS Flex: The latest version.
• Android: Ver.11 and above
  Please Note: The IPEVO camera is recognized by the IPEVO Visualizer app on iPadOS 17 and later with a USB-C iPad. It can also be detected by apps like FaceTime, Teams, and Zoom that support external cameras. If the app doesn't support external camera detection, the camera may not be recognized.

Warranty: 3 years from the date of purchase

Physical Specifications:

• Dimensions: D x W x H (when folded)
  • With base－4.57”x 4.25” x 11.85” (11.6 x 10.8 x 30.1cm)
  • Without base－3.07” x 1.57” x 11.42” (7.8 x 4.0 x 29.0cm)
• Weight: 2.2 lbs (1 kg)

Package Contents:

• IPEVO VZ-R ULTRA
• USB-A to USB-C Cable (4.92 ft / 1.5 m)
• Base
• Screwdriver x 1
• Screw x 4
• Quick start guide
